硬管系列—GR返回 >>
概 况型号参数

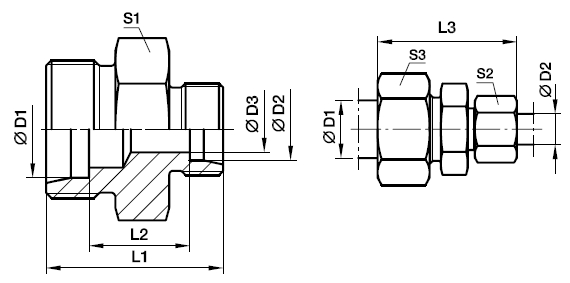

GR-EO24°锥 直通变径接头
| 系列 | 钢管外径D1 | 钢管外径D2 | 重量 | PN (bar) | ||||||||||
| D3 | L1 | L2 | L3 | S1 | S2 | S3 | g/件 | 订货号 | CF | 71 | SS | |||
| L | 8 | 6 | 4.0 | 25 | 11.0 | 40 | 14 | 14 | 17 | 16 | GR08/06L | 500 | 315 | |
| 10 | 6 | 4.0 | 26 | 12.0 | 41 | 17 | 14 | 19 | 21 | GR10/06L | 500 | 315 | ||
| 10 | 8 | 6.0 | 26 | 12.0 | 41 | 17 | 17 | 19 | 21 | GR10/08L | 500 | 315 | 315 | |
| 12 | 6 | 4.0 | 27 | 13.0 | 42 | 19 | 14 | 22 | 26 | GR12/06L | 400 | 315 | ||
| 12 | 8 | 6.0 | 27 | 13.0 | 42 | 19 | 17 | 22 | 26 | GR12/08L | 400 | 315 | ||
| 12 | 10 | 8.0 | 28 | 14.0 | 43 | 19 | 19 | 22 | 29 | GR12/10L | 400 | 315 | 315 | |
| 15 | 10 | 8.0 | 29 | 15.0 | 45 | 24 | 19 | 27 | 46 | GR15/10L | 400 | 315 | 315 | |
| 15 | 12 | 10.0 | 29 | 15.0 | 45 | 24 | 22 | 27 | 45 | GR15/12L | 400 | 315 | 315 | |
| 18 | 10 | 8.0 | 30 | 15.5 | 46 | 27 | 19 | 32 | 65 | GR18/10L | 400 | 315 | 315 | |
| 18 | 12 | 10.0 | 30 | 15.5 | 46 | 27 | 22 | 32 | 64 | GR18/12L | 400 | 315 | ||
| 18 | 15 | 12.0 | 31 | 16.5 | 48 | 27 | 27 | 32 | 65 | GR18/15L | 400 | 315 | 315 | |
| 22 | 12 | 10.0 | 32 | 17.5 | 48 | 32 | 22 | 36 | 80 | GR22/12L | 250 | 160 | ||
| 22 | 15 | 12.0 | 33 | 18.5 | 50 | 32 | 27 | 36 | 89 | GR22/15L | 250 | 160 | ||
| 22 | 18 | 15.0 | 33 | 18.0 | 50 | 32 | 32 | 36 | 89 | GR22/18L | 250 | 160 | 160 | |
| 28 | 18 | 15.0 | 34 | 19.0 | 52 | 41 | 32 | 41 | 142 | GR28/18L | 250 | 160 | 160 | |
| 28 | 22 | 19.0 | 36 | 21.0 | 54 | 41 | 36 | 41 | 139 | GR28/22L | 250 | 160 | 160 | |
| 35 | 22 | 19.0 | 39 | 21.0 | 59 | 46 | 36 | 50 | 202 | GR35/22L | 250 | 160 | ||
| 35 | 28 | 24.0 | 39 | 21.0 | 59 | 46 | 41 | 50 | 206 | GR35/28L | 250 | 160 | 160 | |
| 42 | 35 | 30.0 | 43 | 21.5 | 66 | 55 | 50 | 60 | 330 | GR42/35L | 250 | 160 | ||
| S | 8 | 6 | 4.0 | 32 | 18.0 | 47 | 17 | 17 | 19 | 35 | GR08/06S | 800 | 630 | |
| 10 | 6 | 4.0 | 32 | 17.5 | 48 | 19 | 17 | 22 | 41 | GR10/06S | 800 | 630 | ||
| 10 | 8 | 5.0 | 32 | 17.5 | 48 | 19 | 19 | 22 | 42 | GR10/08S | 800 | 630 | 630 | |
| 12 | 6 | 4.0 | 34 | 19.5 | 50 | 22 | 17 | 24 | 56 | GR12/06S | 630 | 630 | ||
| 12 | 8 | 5.0 | 34 | 19.5 | 50 | 22 | 19 | 24 | 57 | GR12/08S | 630 | 630 | ||
| 12 | 10 | 7.0 | 34 | 19.0 | 51 | 22 | 22 | 24 | 59 | GR12/10S | 630 | 630 | 630 | |
| 16 | 10 | 7.0 | 36 | 20.0 | 54 | 27 | 22 | 30 | 80 | GR16/10S | 630 | 400 | ||
| 16 | 12 | 8.0 | 36 | 20.0 | 54 | 27 | 24 | 30 | 87 | GR16/12S | 630 | 400 | ||
| 20 | 10 | 7.0 | 40 | 22.0 | 60 | 32 | 22 | 36 | 129 | GR20/10S | 420 | 400 | ||
| 20 | 12 | 8.0 | 40 | 22.0 | 60 | 32 | 24 | 36 | 131 | GR20/12S | 420 | 400 | ||
| 20 | 16 | 12.0 | 42 | 23.0 | 63 | 32 | 30 | 36 | 134 | GR20/16S | 420 | 400 | 400 | |
| 25 | 16 | 12.0 | 46 | 25.5 | 68 | 41 | 30 | 46 | 236 | GR25/16S | 420 | 400 | ||
| 25 | 20 | 16.0 | 48 | 25.5 | 71 | 41 | 36 | 46 | 235 | GR25/20S | 420 | 400 | 400 | |
| 30 | 20 | 16.0 | 50 | 26.0 | 74 | 46 | 36 | 50 | 299 | GR30/20S | 420 | 400 | ||
| 30 | 25 | 20.0 | 52 | 26.5 | 77 | 46 | 46 | 50 | 317 | GR30/25S | 420 | 400 | 400 | |
| 38 | 30 | 25.0 | 59 | 29.5 | 87 | 55 | 50 | 60 | 522 | GR38/30S | 420 | 315 | 315 | |
订货示例：
碳钢,无六价铬镀锌：GR15/12LCFX；
316Ti不锈钢：GR15/12L71X；
316L不锈钢：GR15/12LSSX
注：订货号不含螺母卡套，未标注压力等级产品订货请咨询派克销售
样本尺寸仅供参考，请以实际产品尺寸为准。
