硬管系列—GEO-R返回 >>
概 况型号参数

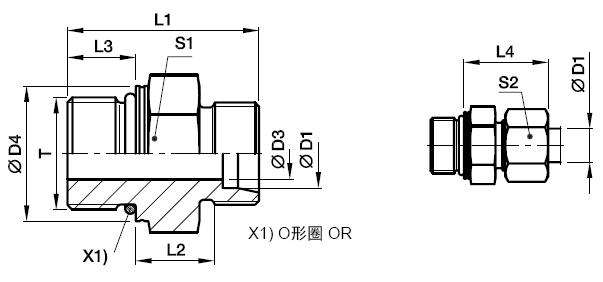

GEO-R英制外螺纹带O形圈(ISO B2351)/EO24°锥 端直通接头
| 系列 | 钢管外径 | PN(bar) | ||||||||
| D1 | T | D3 | D4 | L1 | L2 | L3 | S1 | 订货号 | CF | |
| L | 8 | G1/4A | 6 | 19 | 28 | 10 | 11 | 19 | GEO08LR1/4OMD | 500 |
| 10 | G1/2A | 8 | 24 | 34 | 13 | 14 | 27 | GEO10LR1/2OMD | 400 | |
| 10 | G1/4A | 6 | 19 | 30 | 11 | 12 | 19 | GEO10LR1/4OMD | 500 | |
| 10 | G3/8A | 8 | 22 | 32 | 12 | 12 | 22 | GEO10LR3/8OMD | 420 | |
| 12 | G1/2A | 9 | 24 | 34 | 13 | 14 | 27 | GEO12LR1/2OMD | 400 | |
| 12 | G1/4A | 9 | 19 | 31 | 11 | 12 | 19 | GEO12LR1/4OMD | 420 | |
| 12 | G3/8A | 9 | 22 | 32 | 12 | 12 | 22 | GEO12LR3/8OMD | 420 | |
| 15 | G1/2A | 11 | 24 | 35 | 14 | 14 | 27 | GEO15LR1/2OMD | 400 | |
| 15 | G3/4A | 11 | 32 | 38 | 15 | 16 | 32 | GEO15LR3/4OMD | 250 | |
| 15 | G3/8A | 9 | 22 | 33 | 13 | 12 | 24 | GEO15LR3/8OMD | 400 | |
| 18 | G1/2A | 14 | 24 | 36 | 14 | 14 | 27 | GEO18LR1/2OMD | 400 | |
| 18 | G3/4A | 14 | 32 | 38 | 14 | 16 | 32 | GEO18LR3/4OMD | 250 | |
| 18 | G3/8A | 15 | 22 | 32 | 13 | 11 | 27 | GEO18LR3/8OMD | 400 | |
| 22 | G1/2A | 19 | 27 | 38 | 16 | 15 | 32 | GEO22LR1/2OMD | 250 | |
| 22 | G1A | 18 | 41 | 43 | 17 | 18 | 41 | GEO22LR1OMD | 250 | |
| 22 | G3/4A | 18 | 32 | 40 | 16 | 16 | 32 | GEO22LR3/4OMD | 250 | |
| 28 | G1A | 23 | 41 | 42 | 16 | 18 | 41 | GEO28LR1OMD | 250 | |
| 28 | G3/4A | 18 | 32 | 41 | 17 | 16 | 41 | GEO28LR3/4OMD | 250 | |
| 35 | G3/4A | 18 | 32 | 51 | 24 | 16 | 46 | GEO35LR3/4OMD | 250 | |
| S | 20 | G3/4A | 15 | 32 | 47 | 20 | 16 | 32 | GEO20SR3/4OMD | 420 |
| 25 | G1A | 20 | 41 | 53 | 23 | 18 | 41 | GEO25SR1OMD | 420 | |
| 25 | G3/4A | 18 | 32 | 51 | 23 | 16 | 41 | GEO25SR3/4OMD | 420 | |
| 30 | G1A | 23 | 31 | 55 | 23 | 18 | 46 | GEO30SR1OMD | 420 | |
| 30 | G3/4A | 25 | 32 | 53 | 23 | 16 | 46 | GEO30SR3/4OMD | 420 |
